E-Mobility: Motor Inverter Driver Demonstrator

Demonstrator design of 48V to 60V, 10KW motor inverter with Block Commutation Algorithm for a BLDC Motor using Infineon AURIX TC.

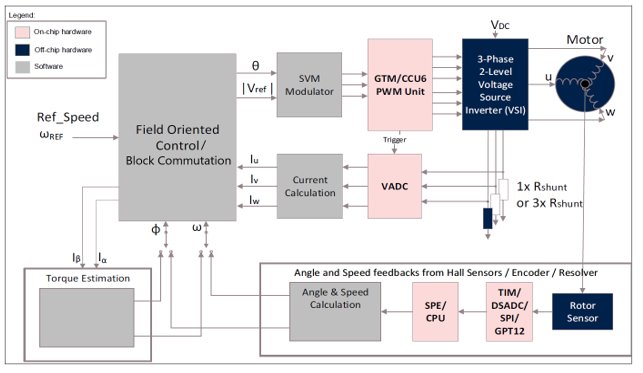

Block Commutation Control for BLDC Motors

Block commutation is a method that controls the timing of a power supply to the motor’s coil, which is essential for BLDC motor.

Smooth Speed Control with Potentiometer

It enables smoother operation and precise speed control by adjusting the potentiometer, we can seamlessly control the motor’s speed, demonstrating the system responsiveness and versatility.

Accurate Motor Feedback Loop to Inverter

A variable potentiometer and Hall sensor signal are used for accurate feedback from the motor, and they are connected back to the inverter.

E-Mobility: Motor Inverter Driver Demonstrator
